BEARING - SLIDING RINGS
Material
Pressure Max (Bar)
Heat Max (C)
Sliding Speed
POM Po 0006
-40 → +110
≤ 1

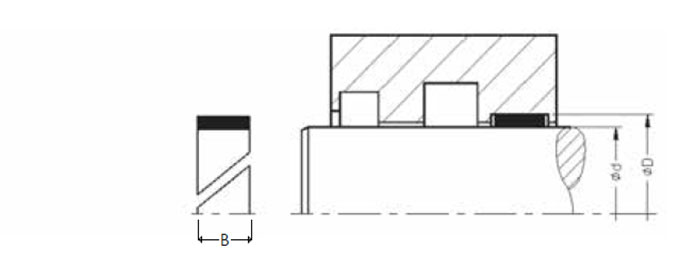

İS84 PISTON GUIDE RING (POM)
Material
Pressure Max (Bar)
Heat Max (C)
Sliding Speed
Polyester P/Rs 0025
-40 → +125
≤ 1

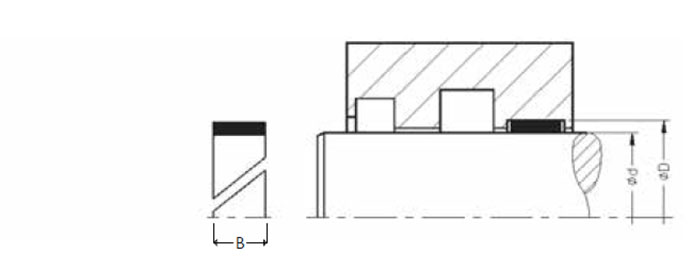

İS85 ROD GUIDE RING (POLYESTER RESIN)
Material
Pressure Max (Bar)
Heat Max (C)
Sliding Speed
Fenolik F/Rs 0025
→
≤ 1

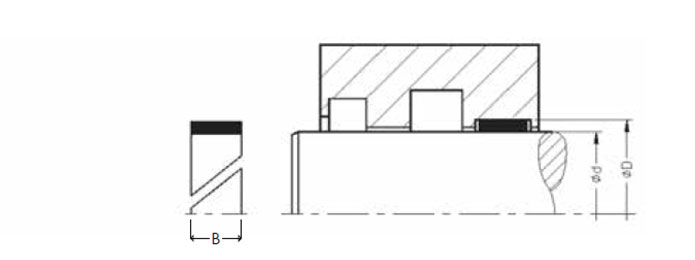

İS86 PISTON GUIDE RING (PHENOLIC RESIN)
Material
Pressure Max (Bar)
Heat Max (C)
Sliding Speed
PTFE Br 0441
-50 → +225
≤ 15
İS80 GUIDE STRIP (BRONZE FILLED PTFE)
Material
Pressure Max (Bar)
Heat Max (C)
Sliding Speed
PTFE Cr 0630
-50 → +225
≤ 15
İS81 GUIDE STRIP (CARBON FILLED PTFE)
Material
Pressure Max (Bar)
Heat Max (C)
Sliding Speed
Polyester P/Rs 0025
-40 → +125
≤ 1
İS82 GUIDE (POLYESTER RESIN-IMPORT)
Material
Pressure Max (Bar)
Heat Max (C)
Sliding Speed
POM Po 0006
-40 → +110
≤ 1
İS83 ROD GUIDE RING (POM)
Material
Pressure Max (Bar)
Heat Max (C)
Sliding Speed
POM Po 0006
Isı Değeri
≤ 1
İS87 TELESCOPIC GUIDE
