PNEUMATIC PISTON SEALING ELEMENTS
Material
Pressure Max (Bar)
Heat Max (C)
Sliding Speed
NBR N 0190
14
-30 → +110
≤ 1
FKM F 0382
16
-30 → +225
PU P 0280
-30 → +80

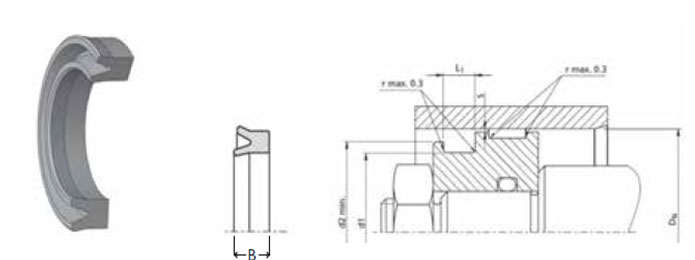

İS23 PISTON U-CUP
Material
Pressure Max (Bar)
Heat Max (C)
Sliding Speed
NBR N 0175
16
-30 → +110
≤ 1
FKM F 0375
-30 → +225
FE Ds 37
İS55 PNEUMATIC PISTON SEAL
Material
Pressure Max (Bar)
Heat Max (C)
Sliding Speed
NBR N 0170
12
-30 → +110
≤ 1
FKM F 0370
-30 → +225
FE Ds 37
İS56 PNEUMATIC PISTON SEAL (SHORT TYPE)
Material
Pressure Max (Bar)
Heat Max (C)
Sliding Speed
NBR N 0190
16
-30 → +110
≤ 1
FKM F 0390
-30 → +225
İS58 PNEUMATIC PISTON SEAL (SINGLE ACTING)
Material
Pressure Max (Bar)
Heat Max (C)
Sliding Speed
NBR N 0170
12
-30 → +110
≤ 1
FKM F 0370
-30 → +225
İS52 PNEUMATIC PISTON SEAL
